Ecms Black Chrome Series Gauges
Ecms Black Chrome 12/24V gauges complete with wired Molex connector.
Polished Stainless Steel bezel and black dial. Watertight IP67 protected domed fog-resistant lens.
Customizable multi-color LED backlighted dial.

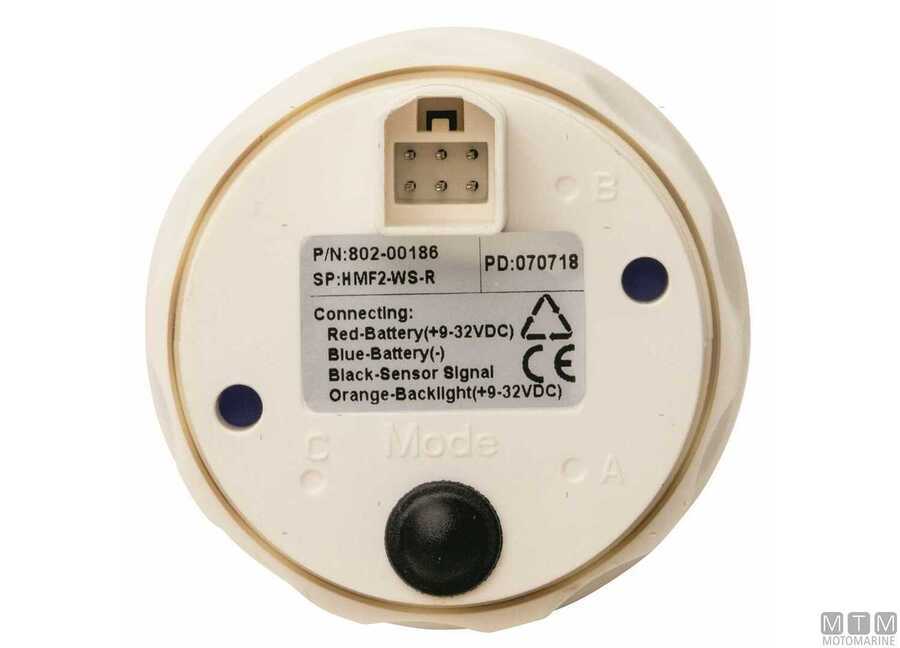

The level gauges can be set to any impedance value using the rear configuration button. They are pre-set to the standard value 0-190 Ohm.
The 5 and 10 bar oil pressure gauges are compatible with standard sensors (10-180 Ohm), while the 30 bar one is only compatible with electronic sensors (0.5-4.5V).
The ammeters are complete with sensor (shunt) to measure the current.
| Product | Instrument | Range | ø mm | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

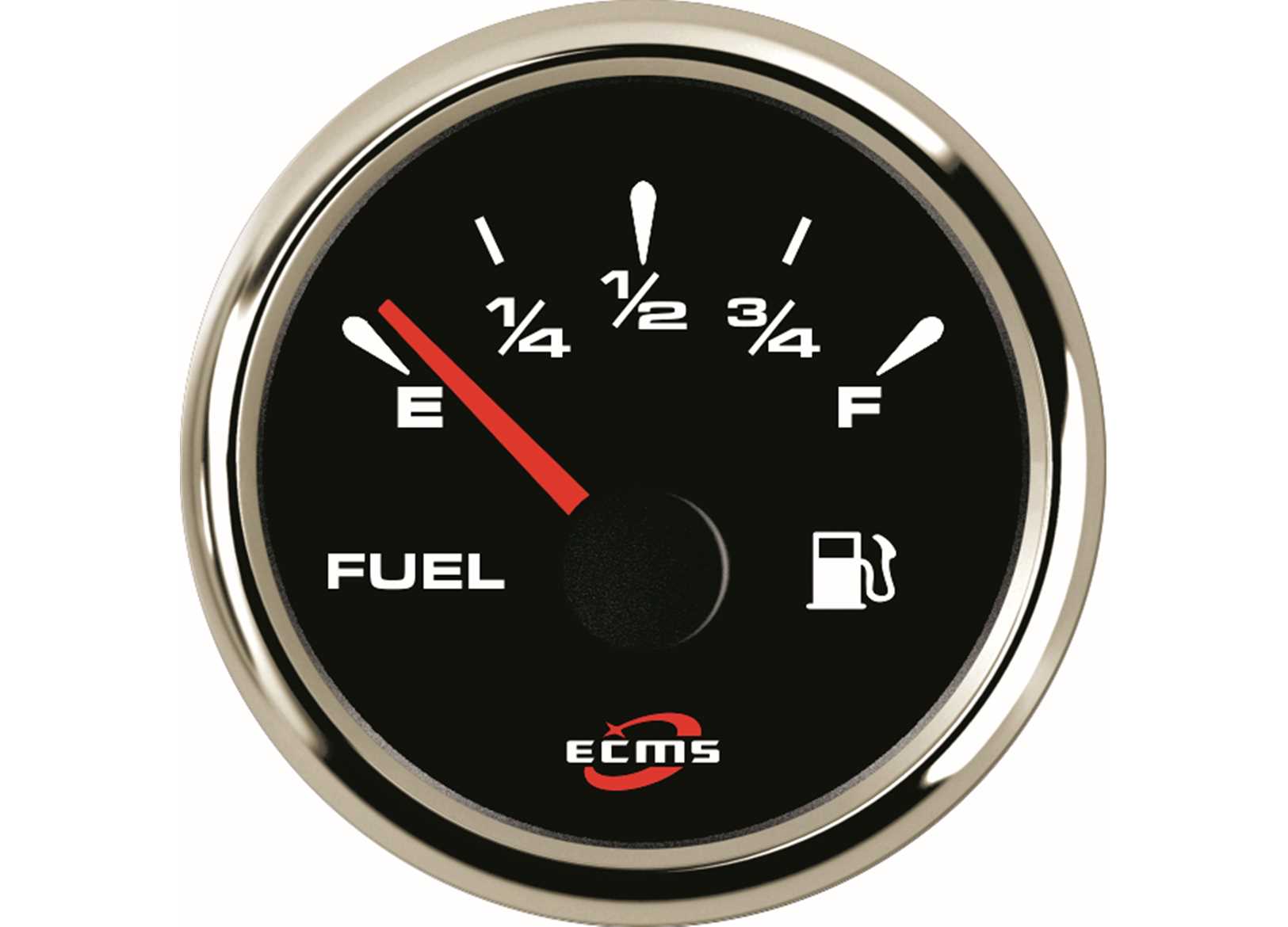

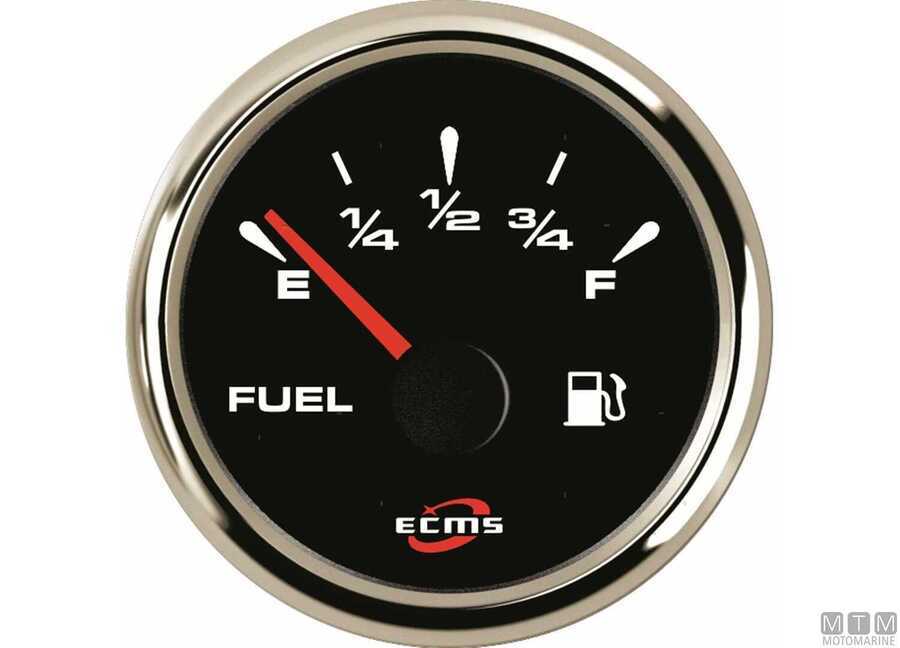

| Fuel Level Gauge | E-1/2-F | 52 | |||||||||||||
|
|
|||||||||||||||
| Water Level Gauge | E-1/2-F | 52 | |||||||||||||
|
|
|||||||||||||||

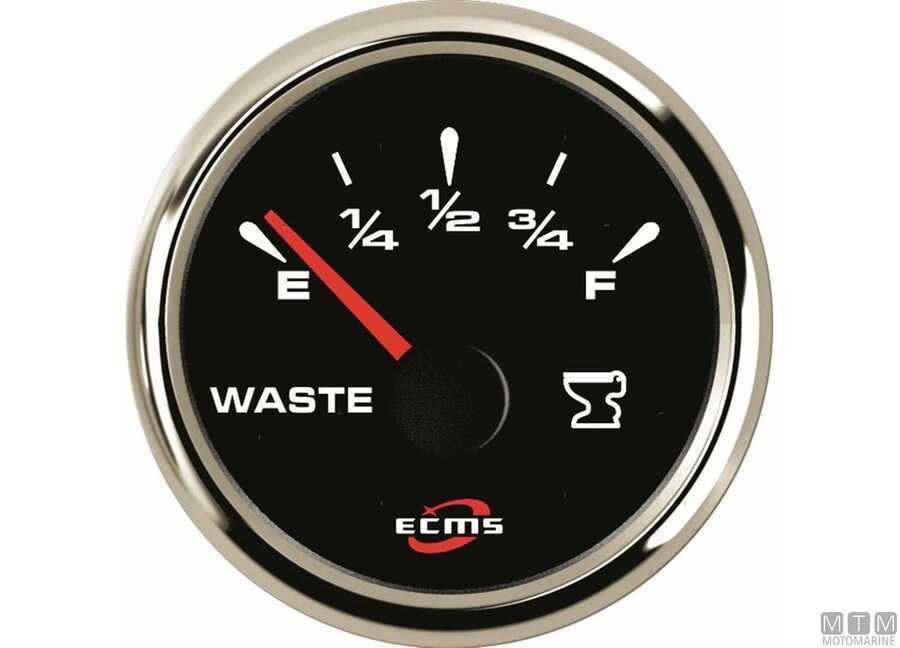

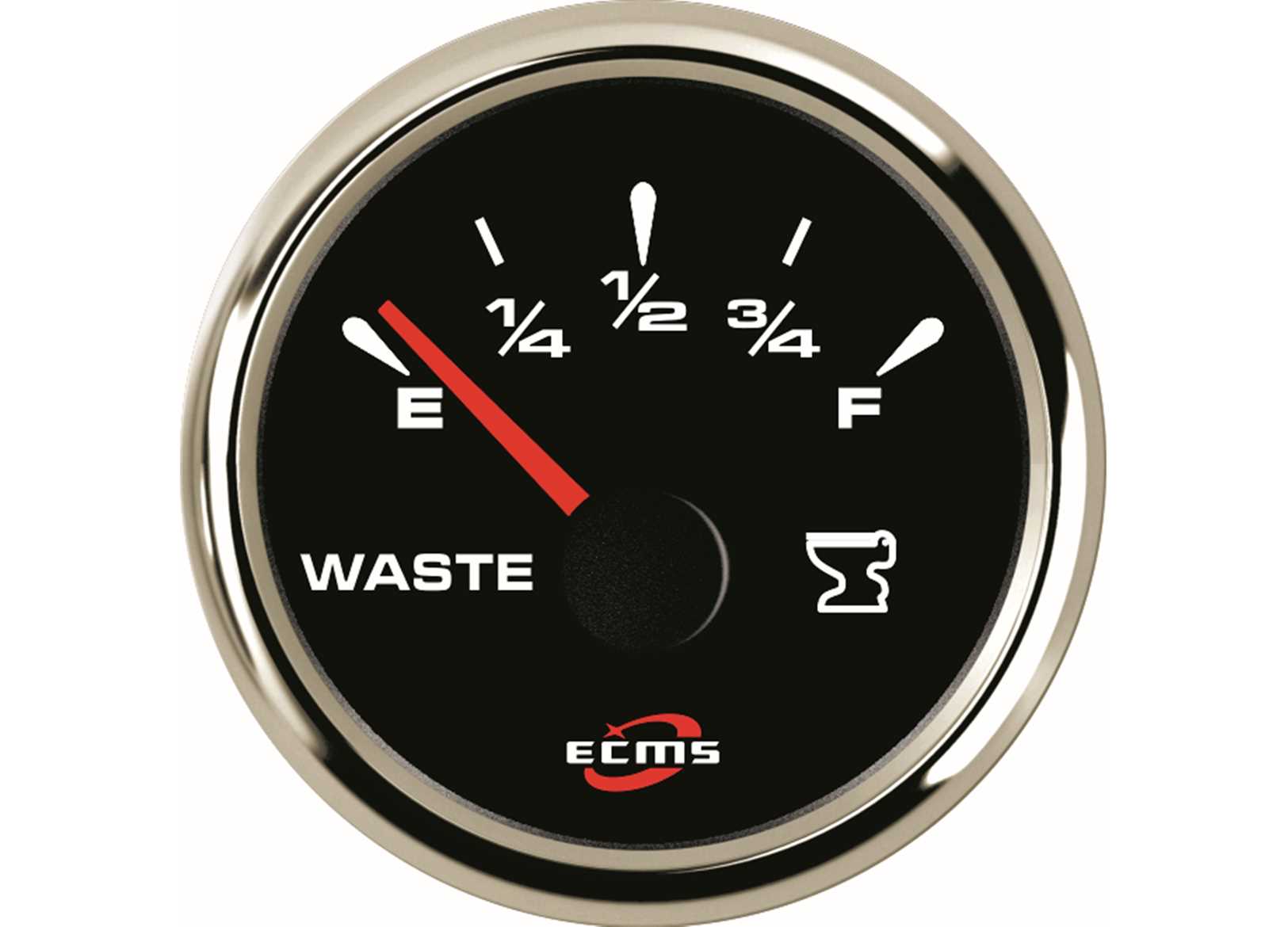

| Sewage Level Gauge | E-1/2-F | 52 | |||||||||||||
|
|
|||||||||||||||

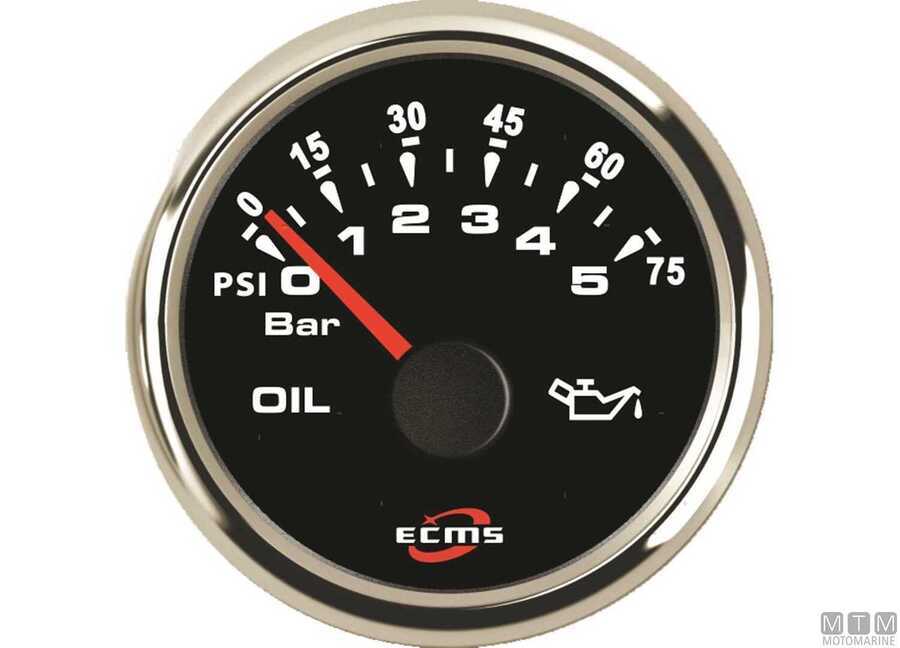

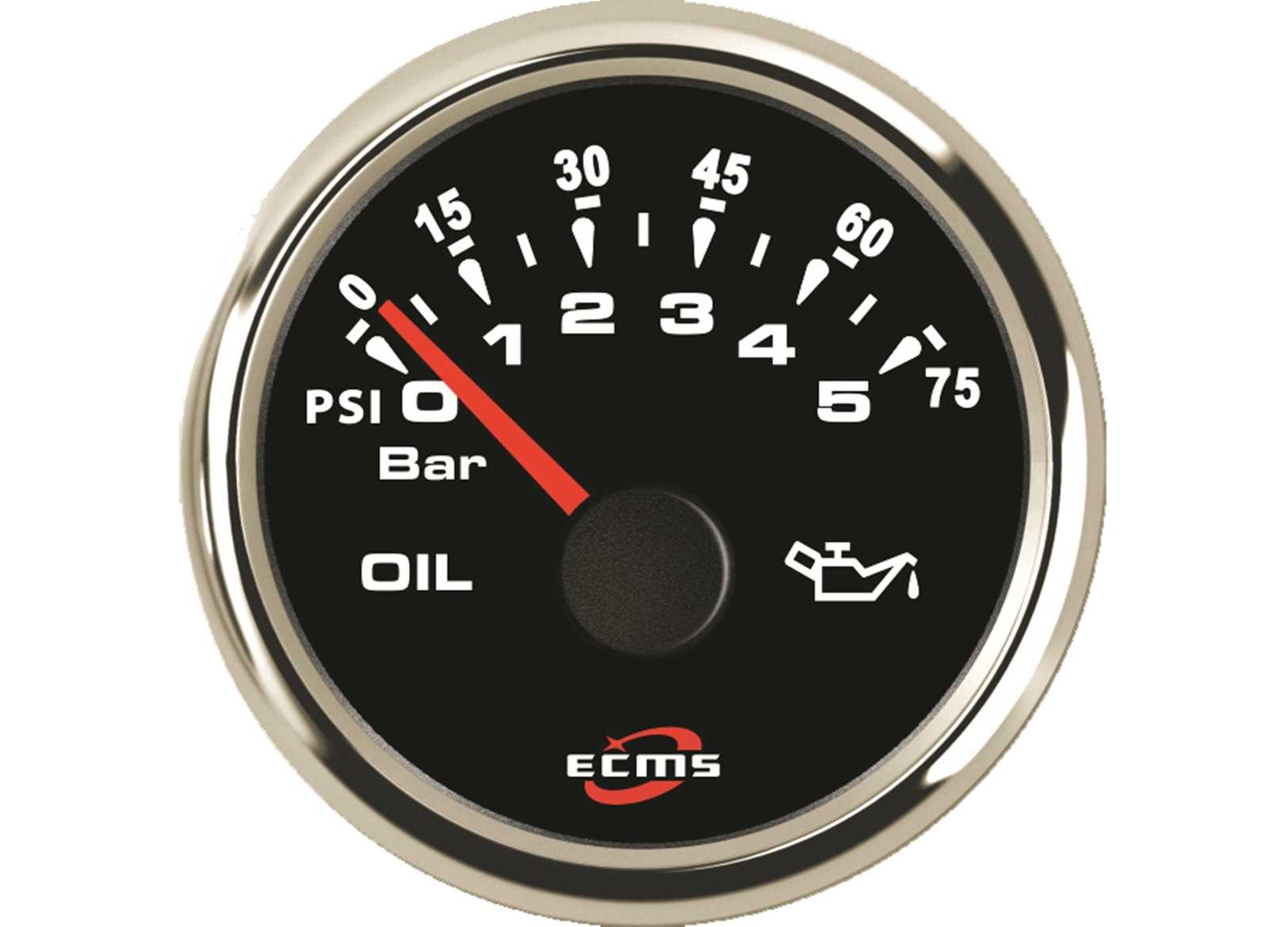

| Oil Pressure Gauge | 0-5 bar | 52 | |||||||||||||
|
|
|||||||||||||||

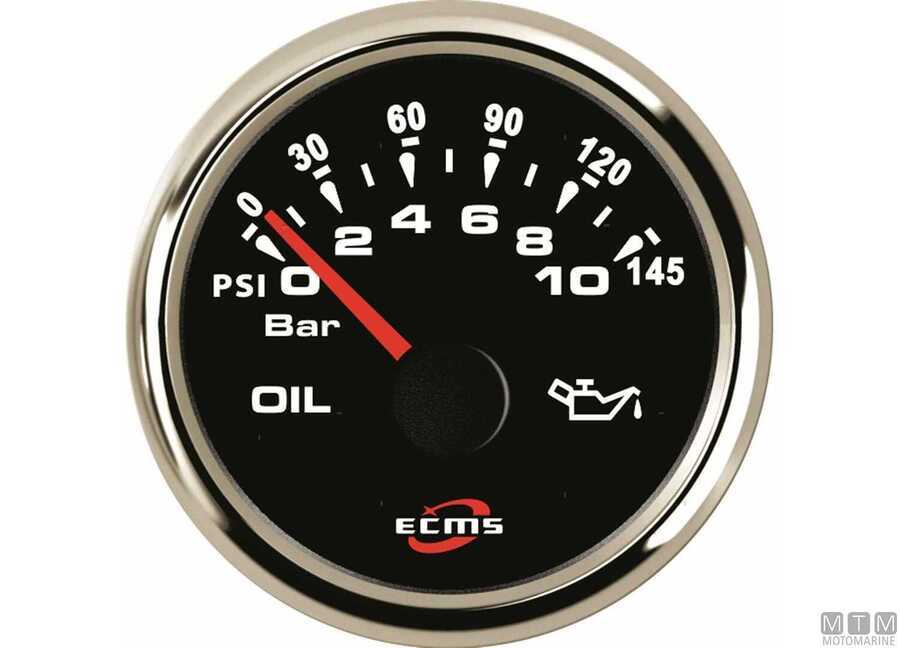

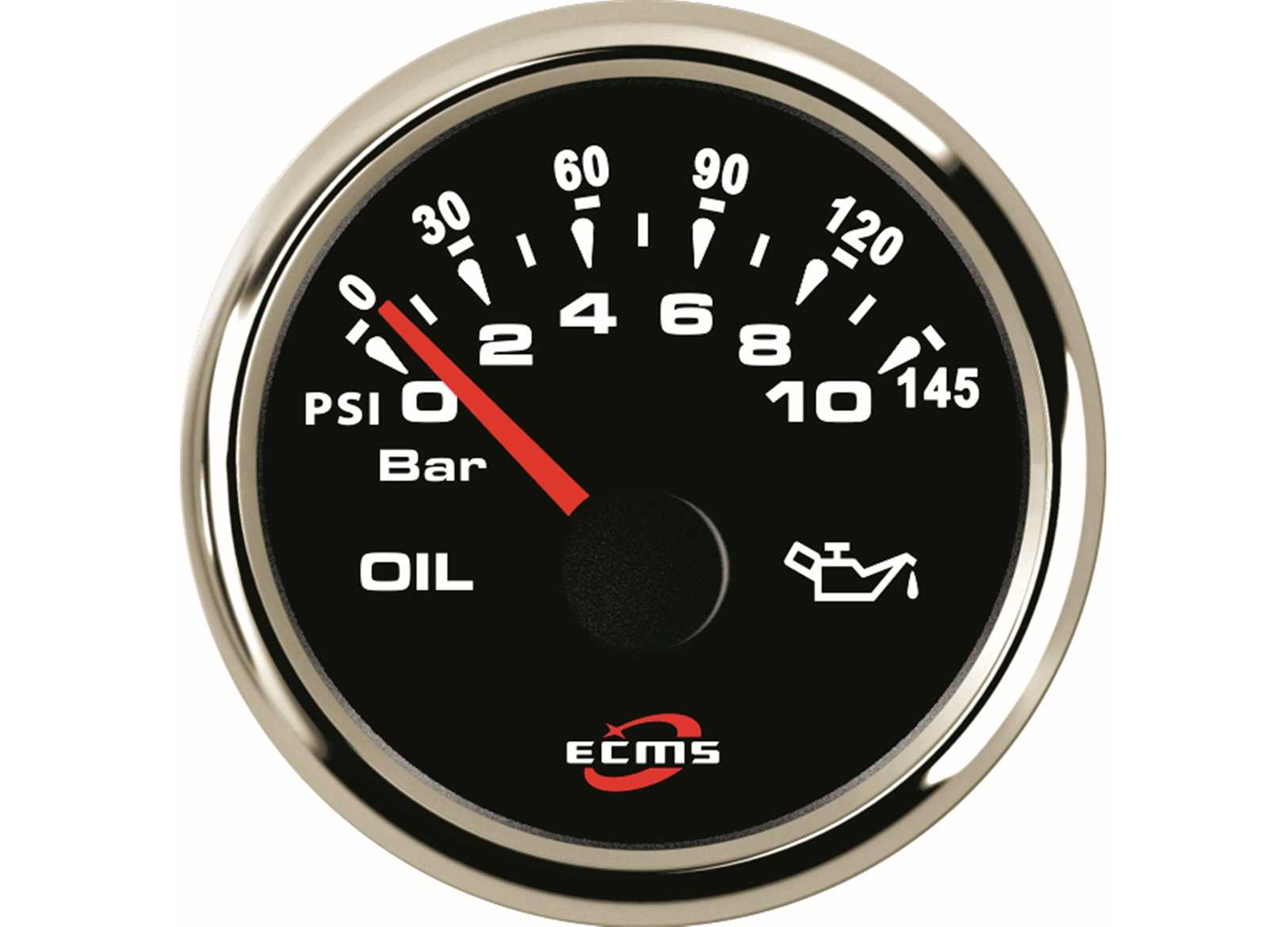

| Oil Pressure Gauge | 0-10 bar | 52 | |||||||||||||
|
|
|||||||||||||||
| Oil Pressure Gauge | 0-30 bar | 52 | |||||||||||||
|
|
|||||||||||||||

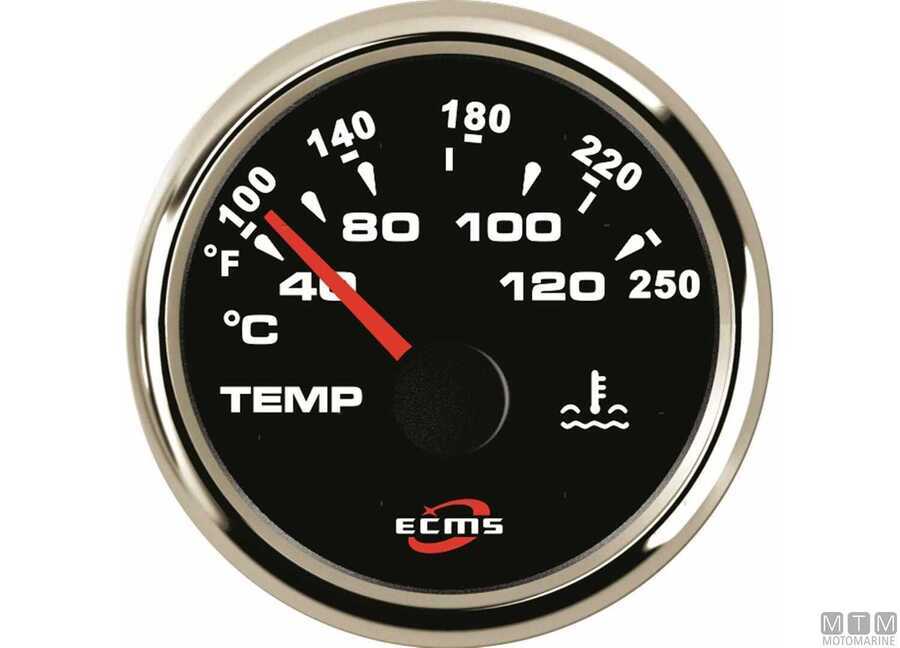

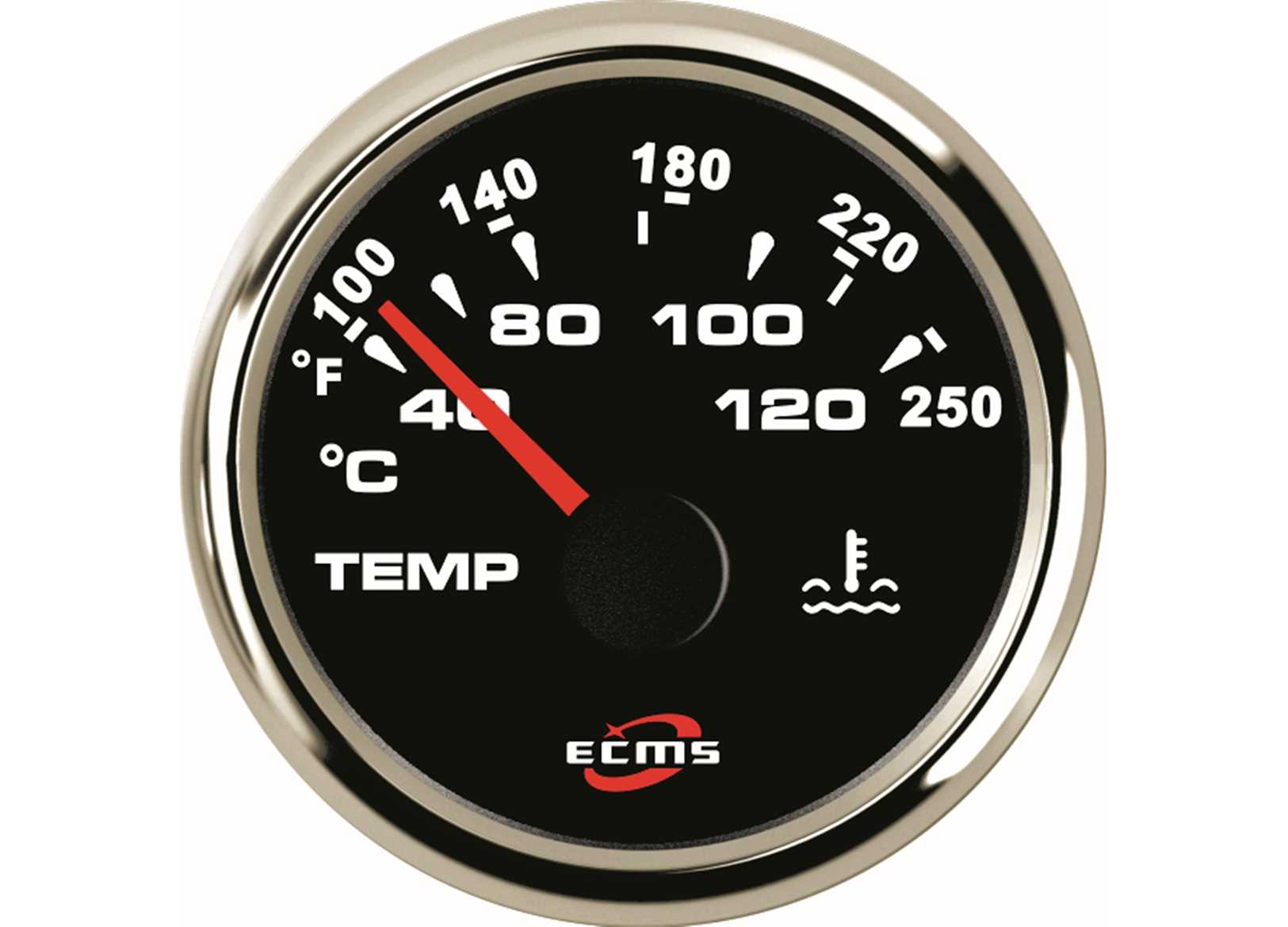

| Water Temperature Gauge | 40-120° | 52 | |||||||||||||
|
|
|||||||||||||||

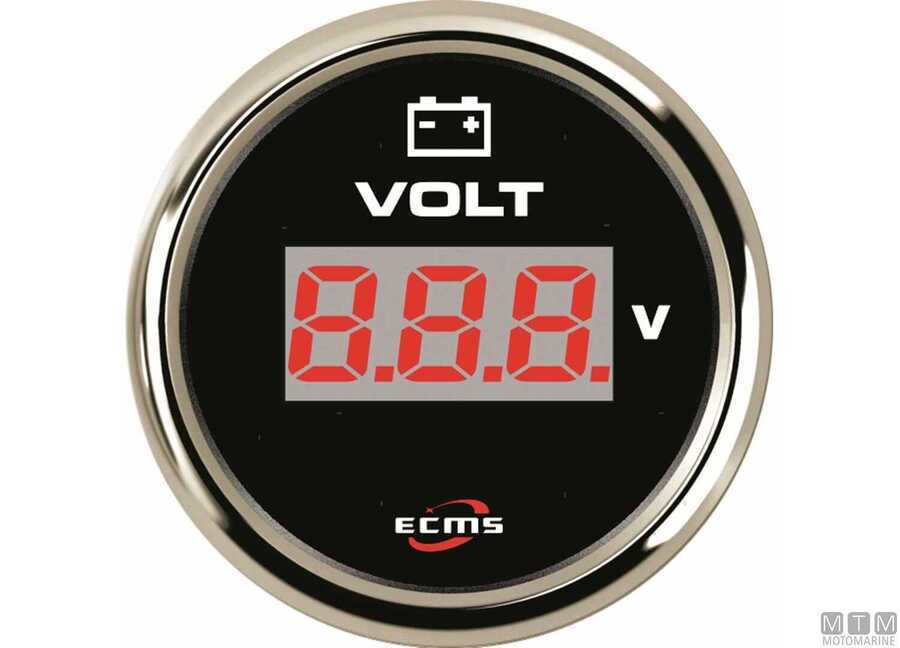

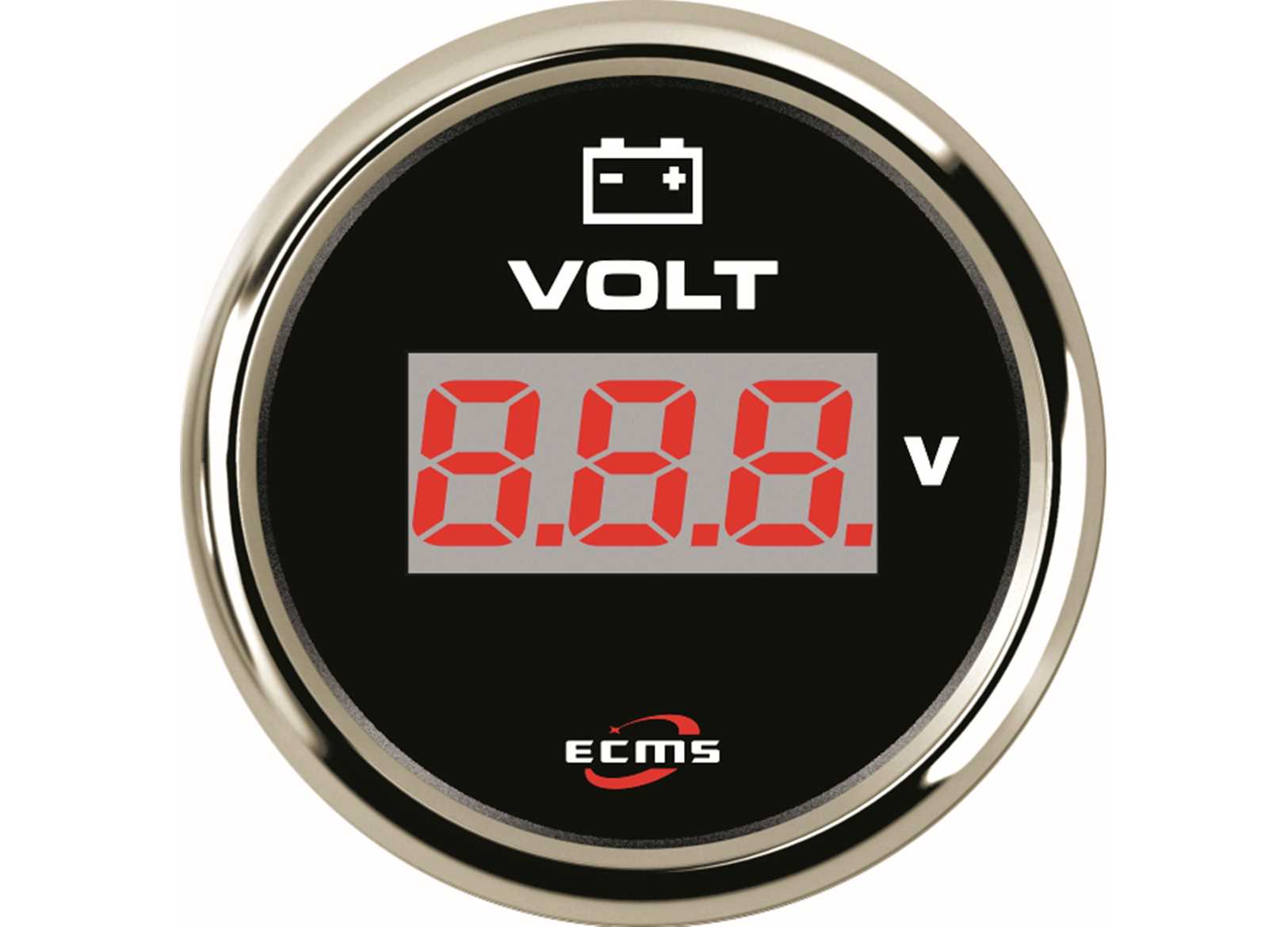

| Voltmeter 12/24V | 8-32V | 52 | |||||||||||||
|
|
|||||||||||||||

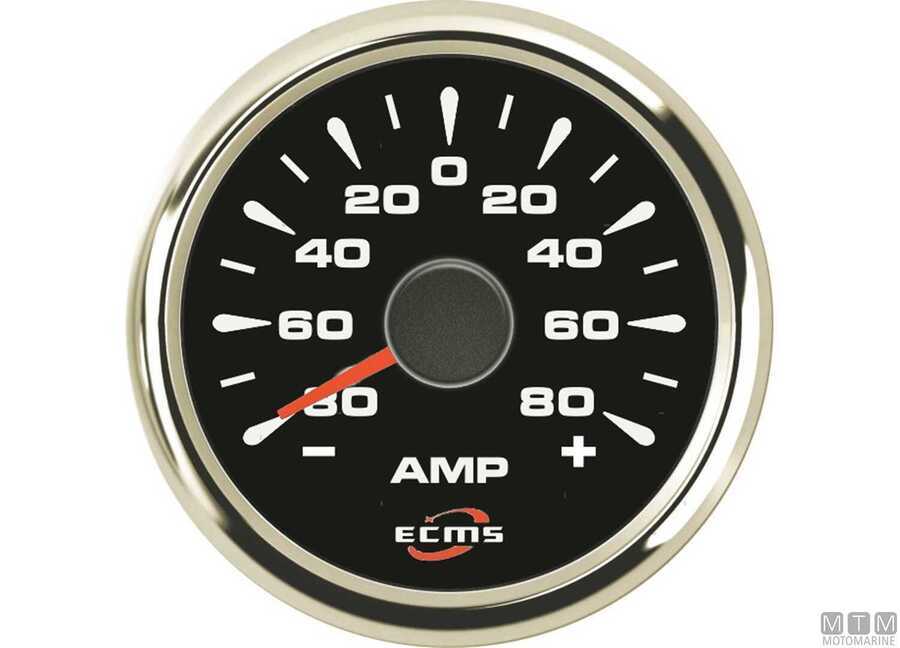

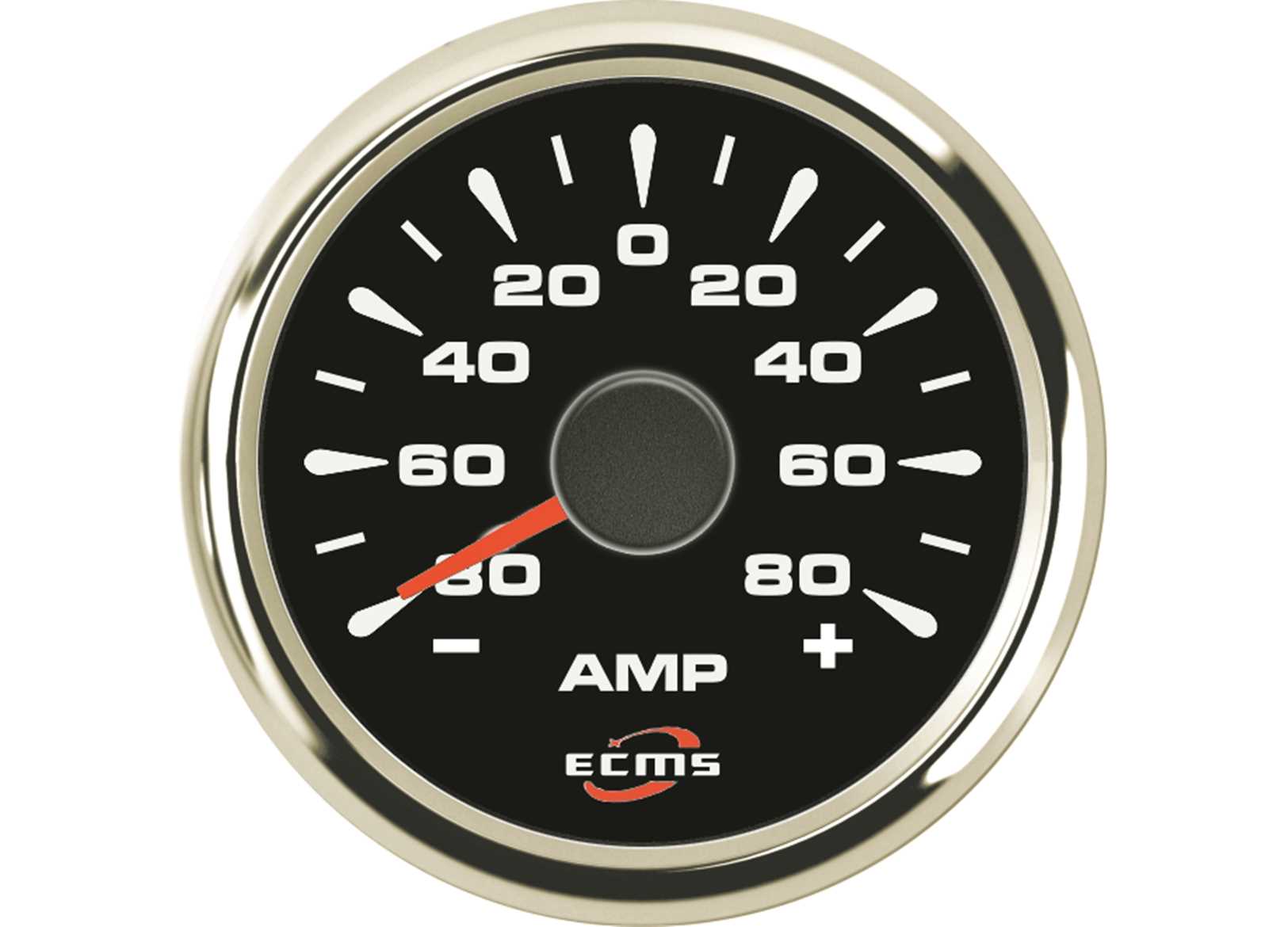

| Analogic Ammeter with Shunt | -80+80A | 52 | |||||||||||||
|
|
|||||||||||||||

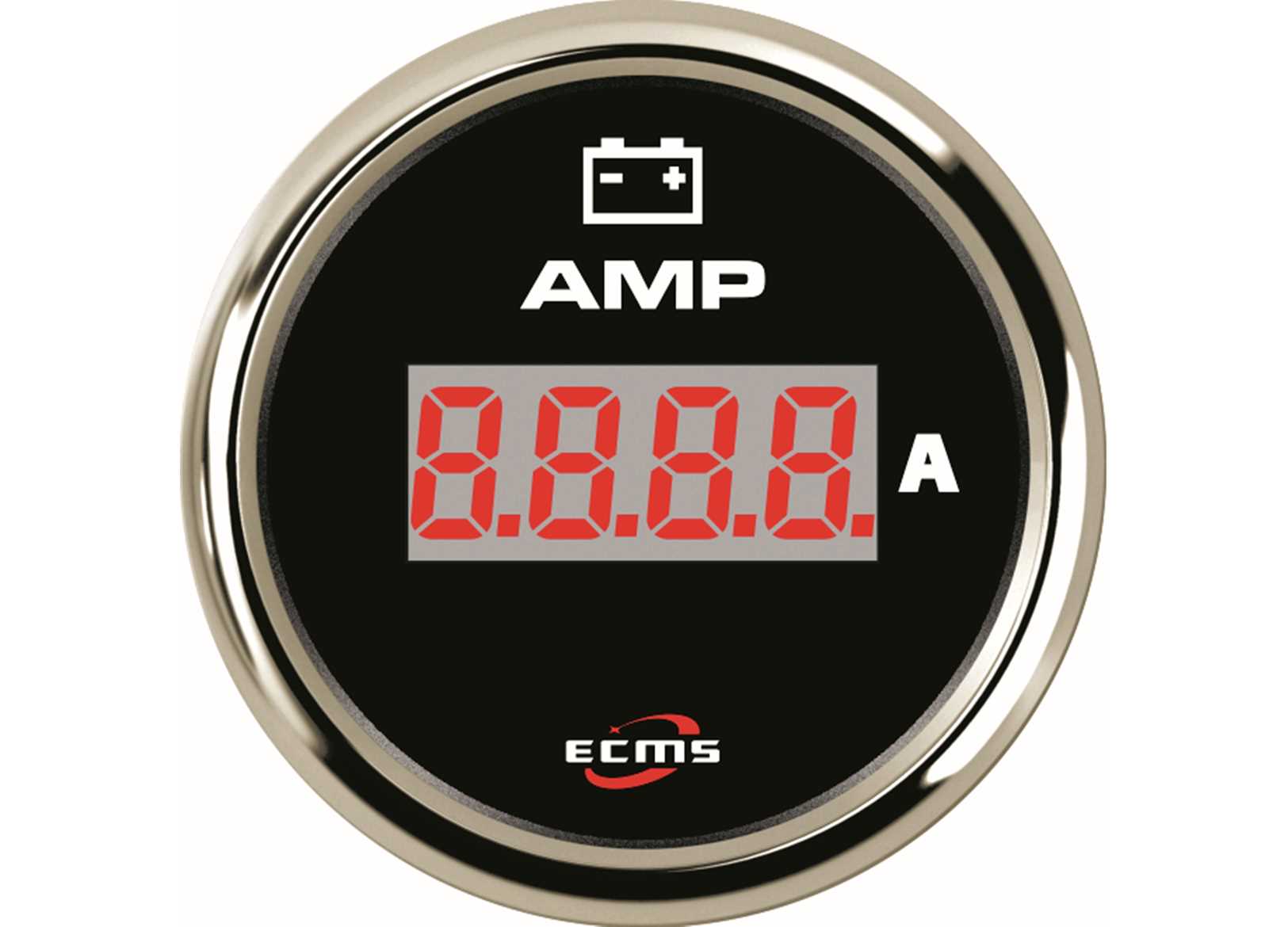

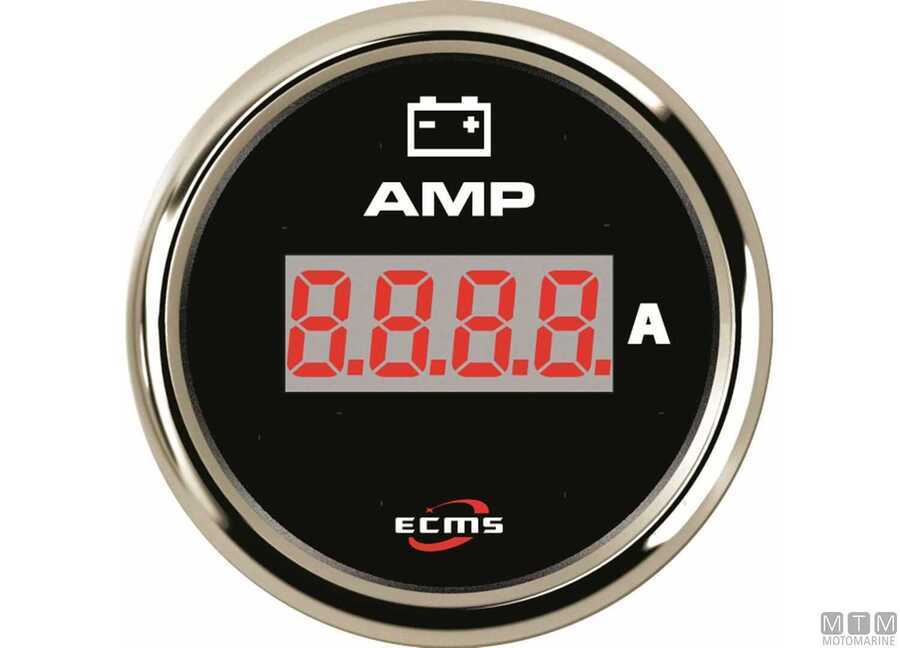

| Digital Ammeter with Shunt | -150+150A | 52 | |||||||||||||
|
|
|||||||||||||||

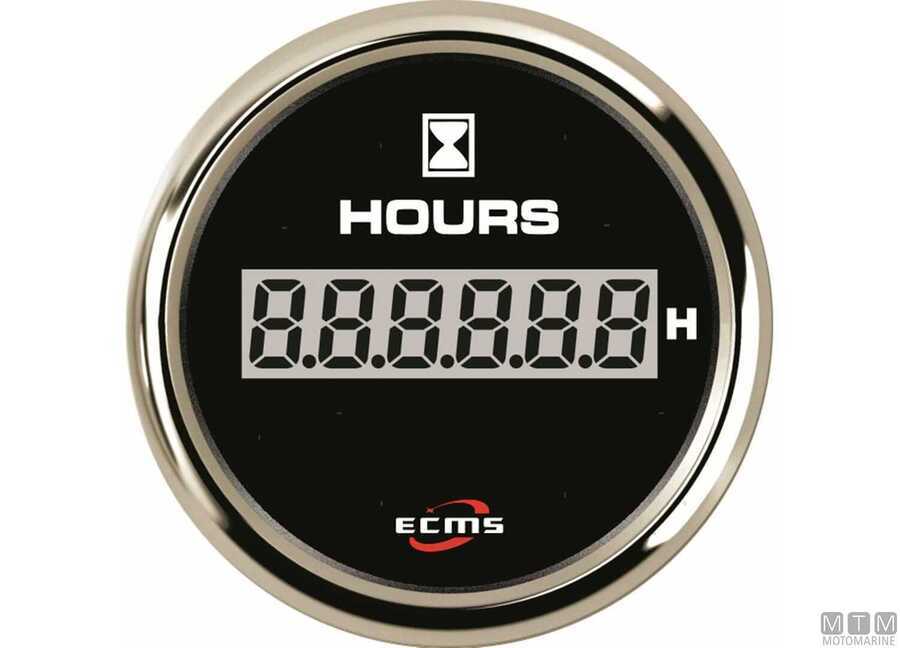

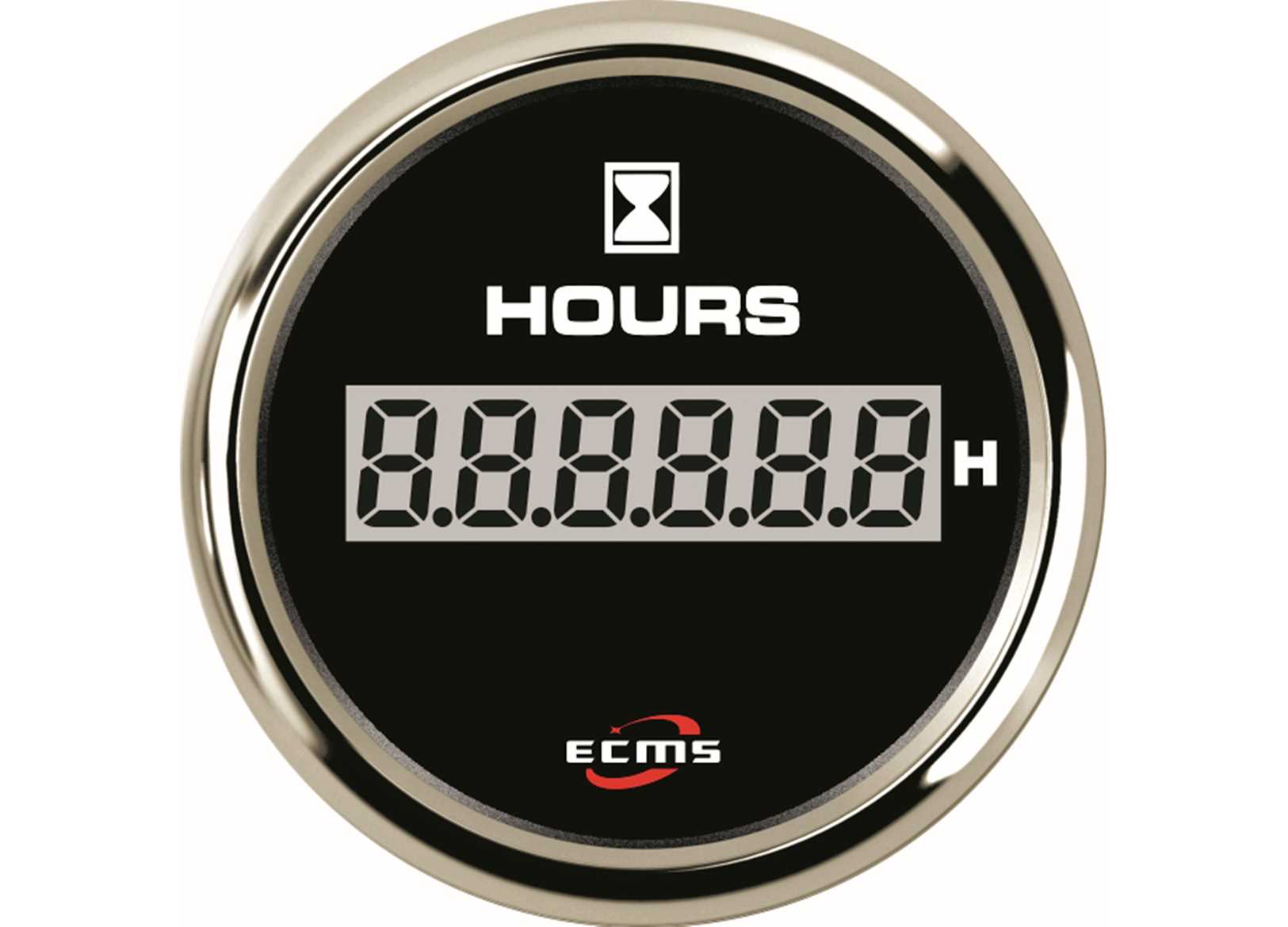

| Hourmeter | 0-99999.9H | 52 | |||||||||||||
|
|
|||||||||||||||

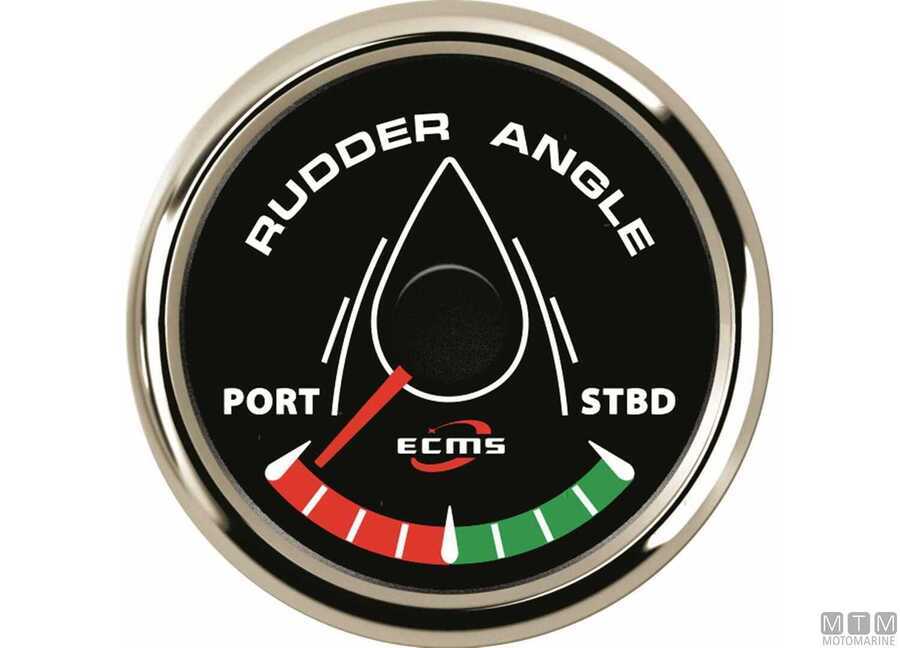

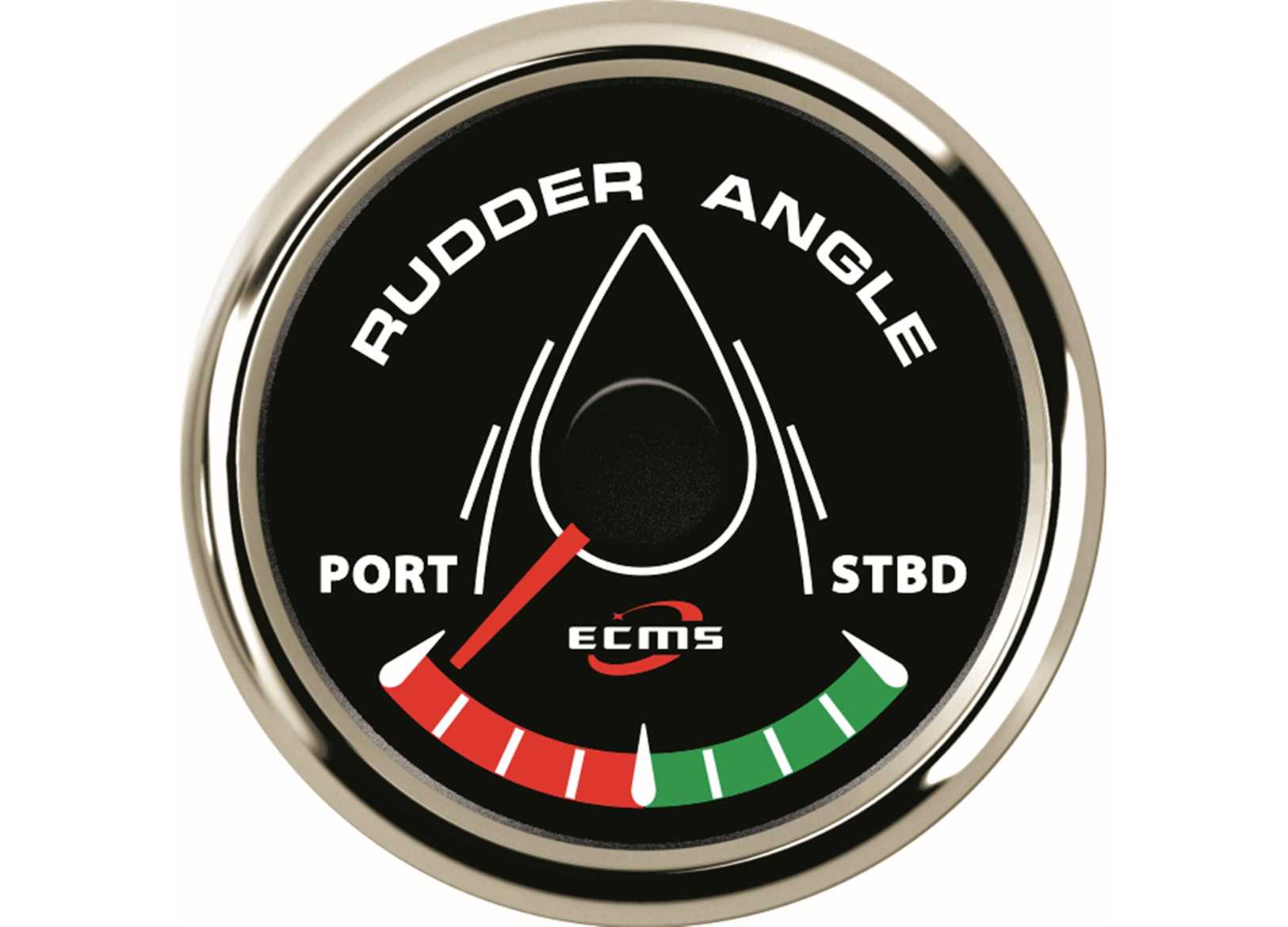

| Rudder Angle Gauge | Port-Starboard | 52 | |||||||||||||
|
|
|||||||||||||||

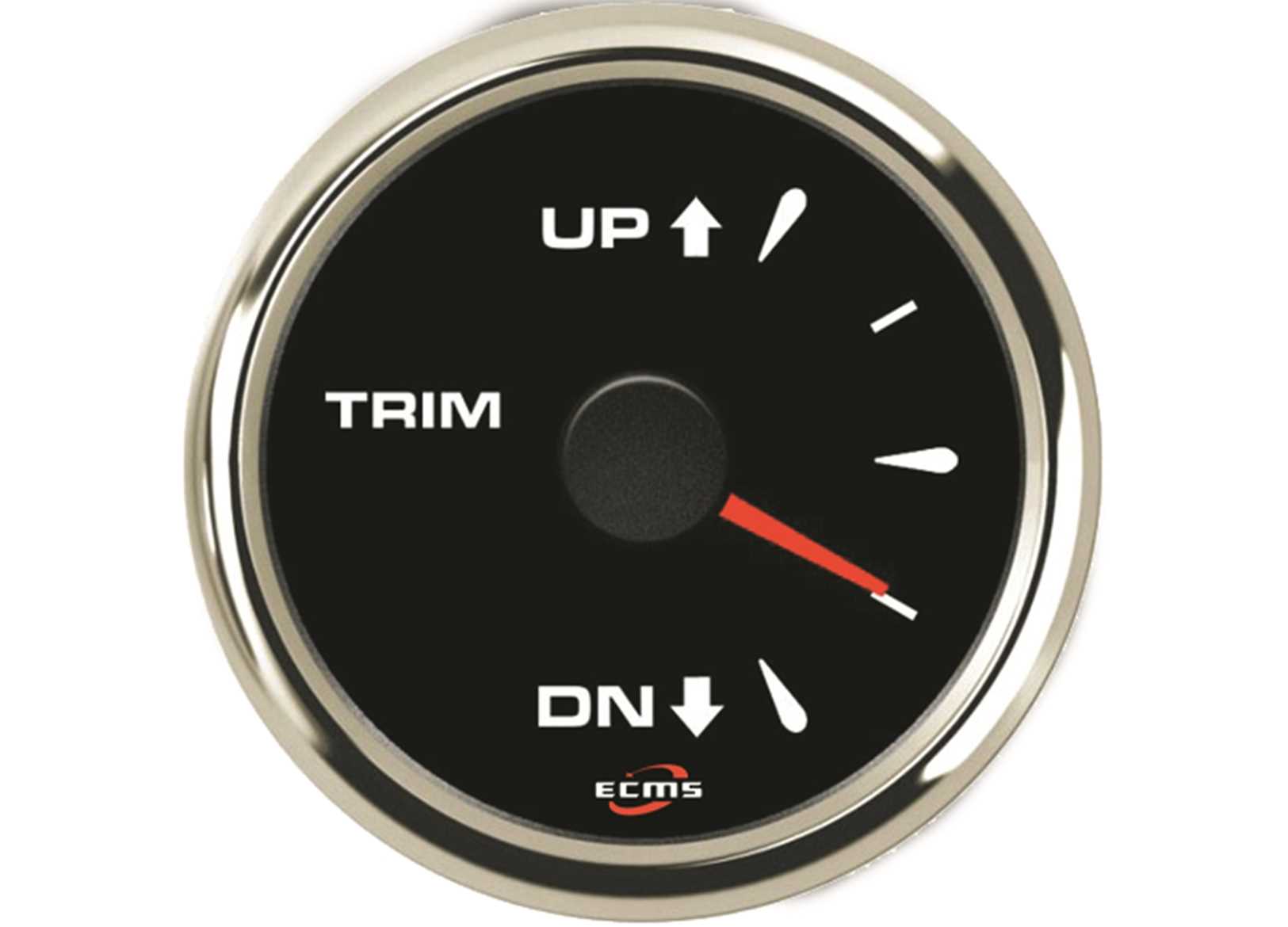

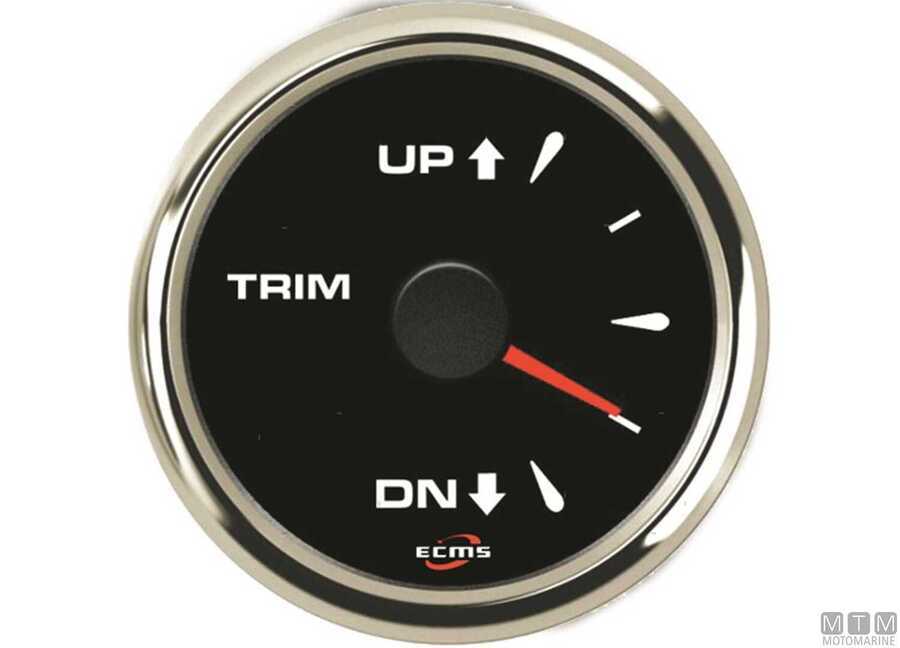

| Trim Gauge 0-190 Ohm | Up-Dn | 52 | |||||||||||||
|
|
|||||||||||||||
| Trim Gauge 167-10 Ohm | Up-Dn | 52 | |||||||||||||
|
|
|||||||||||||||
