Battery Switch Bep 700 Easyfit 275A
Battery switch with knob and tinned copper M10 pins.
Code
2103106
Description

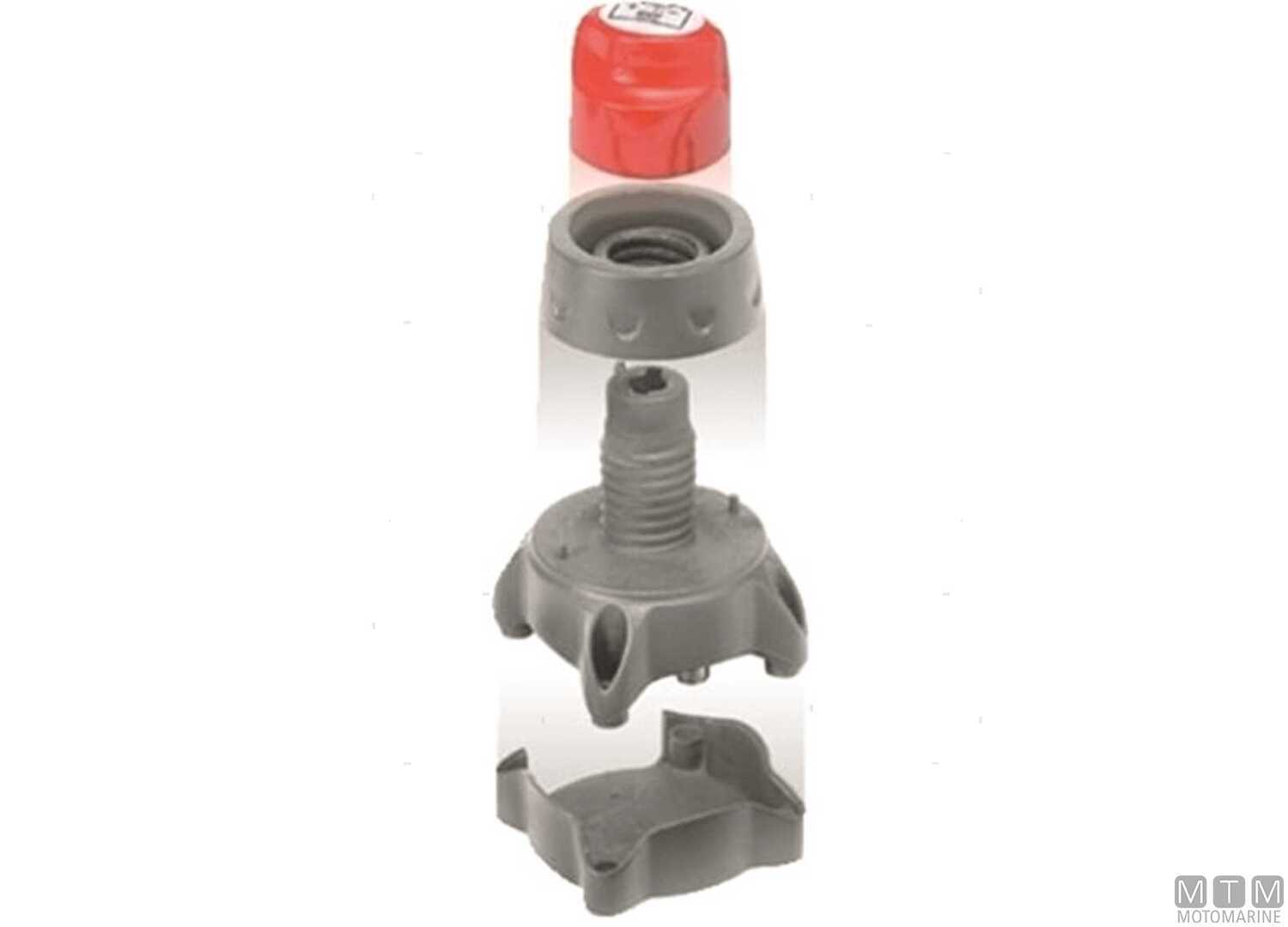

Battery switch with knob and tinned copper M10 pins. Thanks to the Easyfit threaded pin, it can be flush mounted with a simple 24 mm hole on panels up to 19 mm thick. Tested for current values and compliant with explosion-proof requirements.
Current = Max capacity
Specifications
- DC275A
- AC455A
- Starting Current1250A

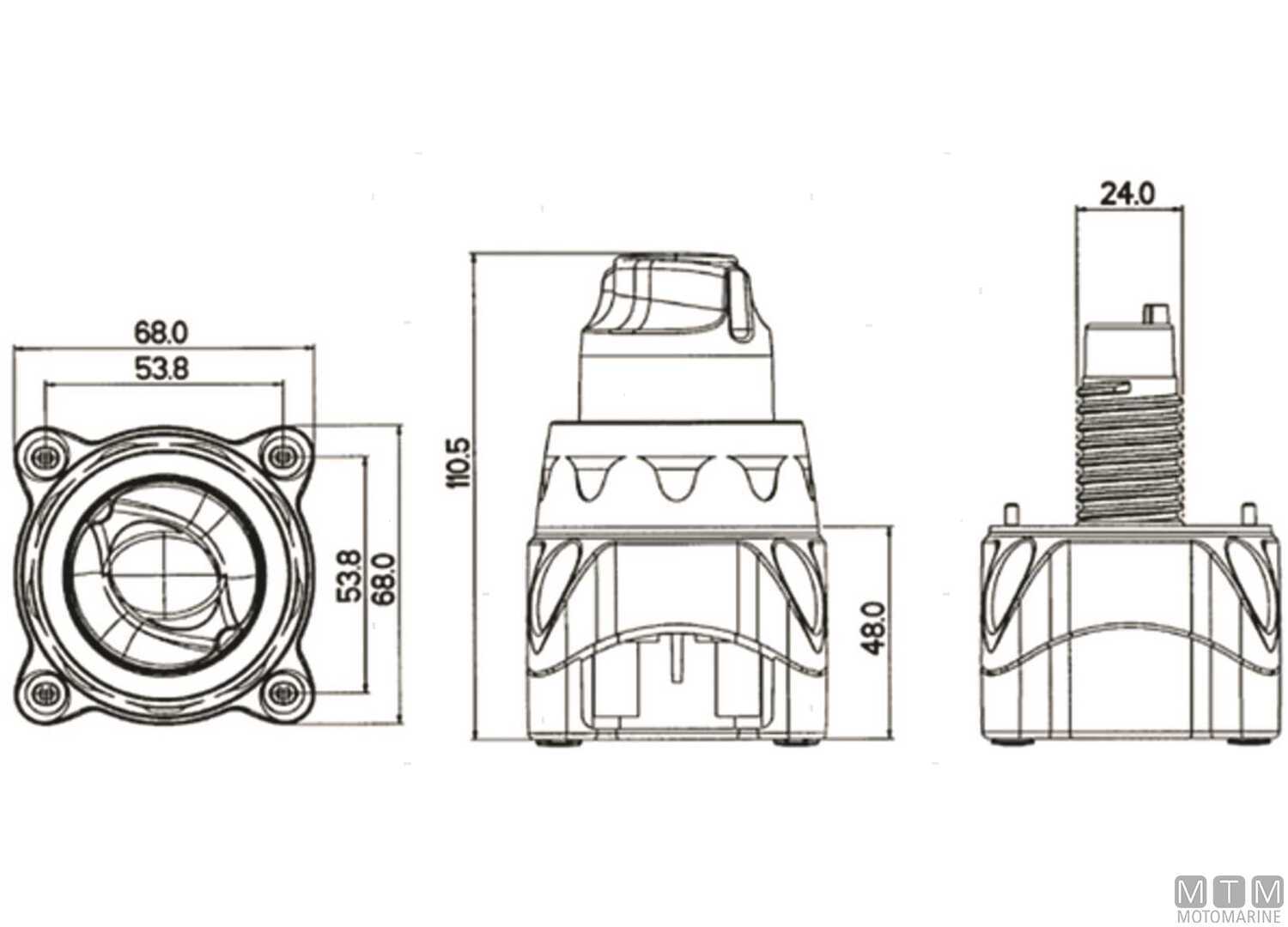

- Dim mm68 x 68 x H110
