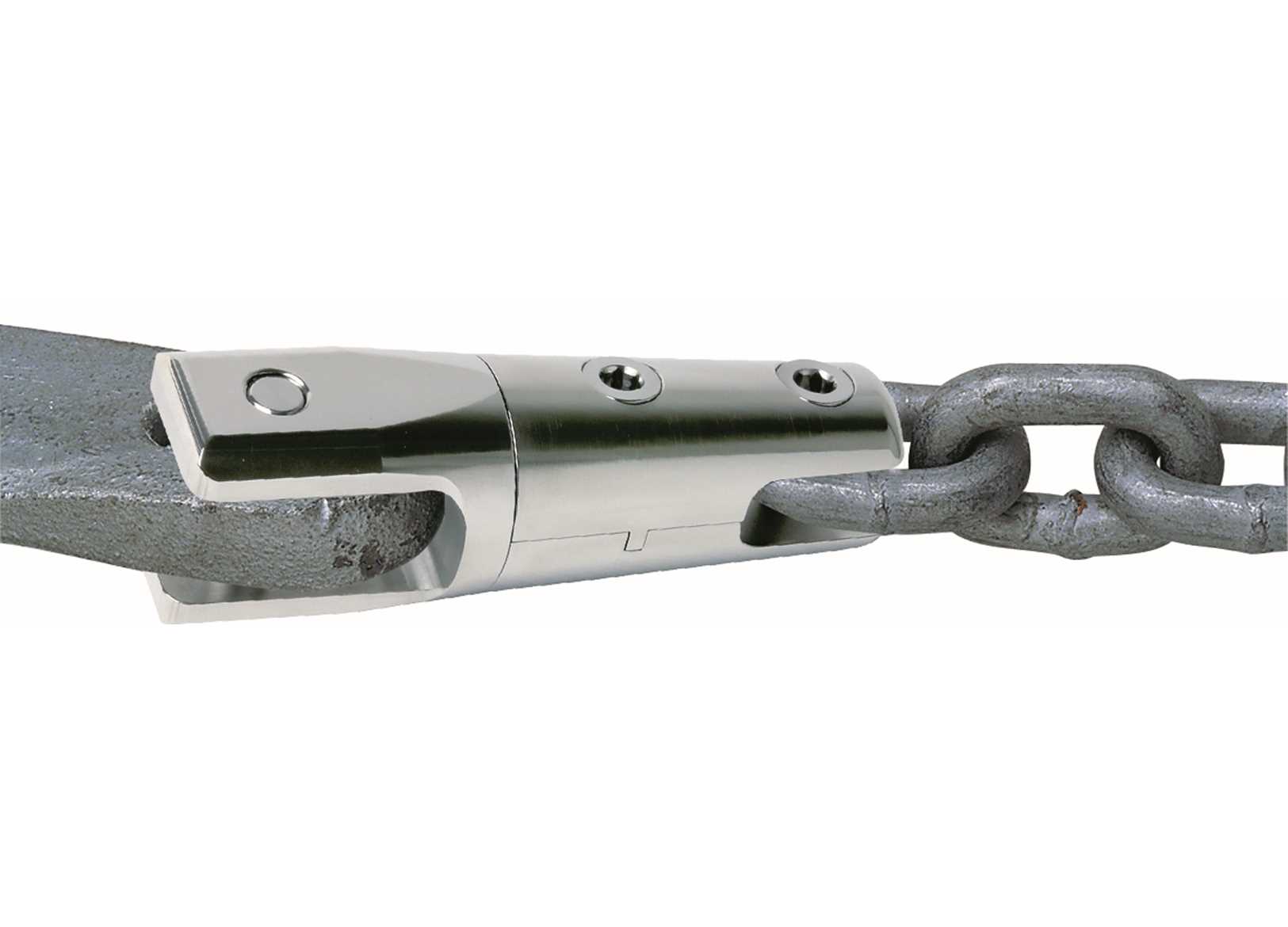

Sidermarine G70 Anchor Connector Ø12/14/16mm 316 Stainless Steel

Code

0123234

Description

SiderMarine anchor connector for complete safety to the boat and to the crew.
Ideal for performing anchors and chains with high breaking loads.
The side bending load is basically equal to the vertical one.

- High resistance forged Stainless Steel body with self-locking pins
- 174-PH Stainless Steel pins with 3 times higher load than 316 Stainless Steel
- Chain pin with anti-friction Bronze bushings
- Rotation on special high resistance Bronze flange
- Fully inspectable for checks and cleaning

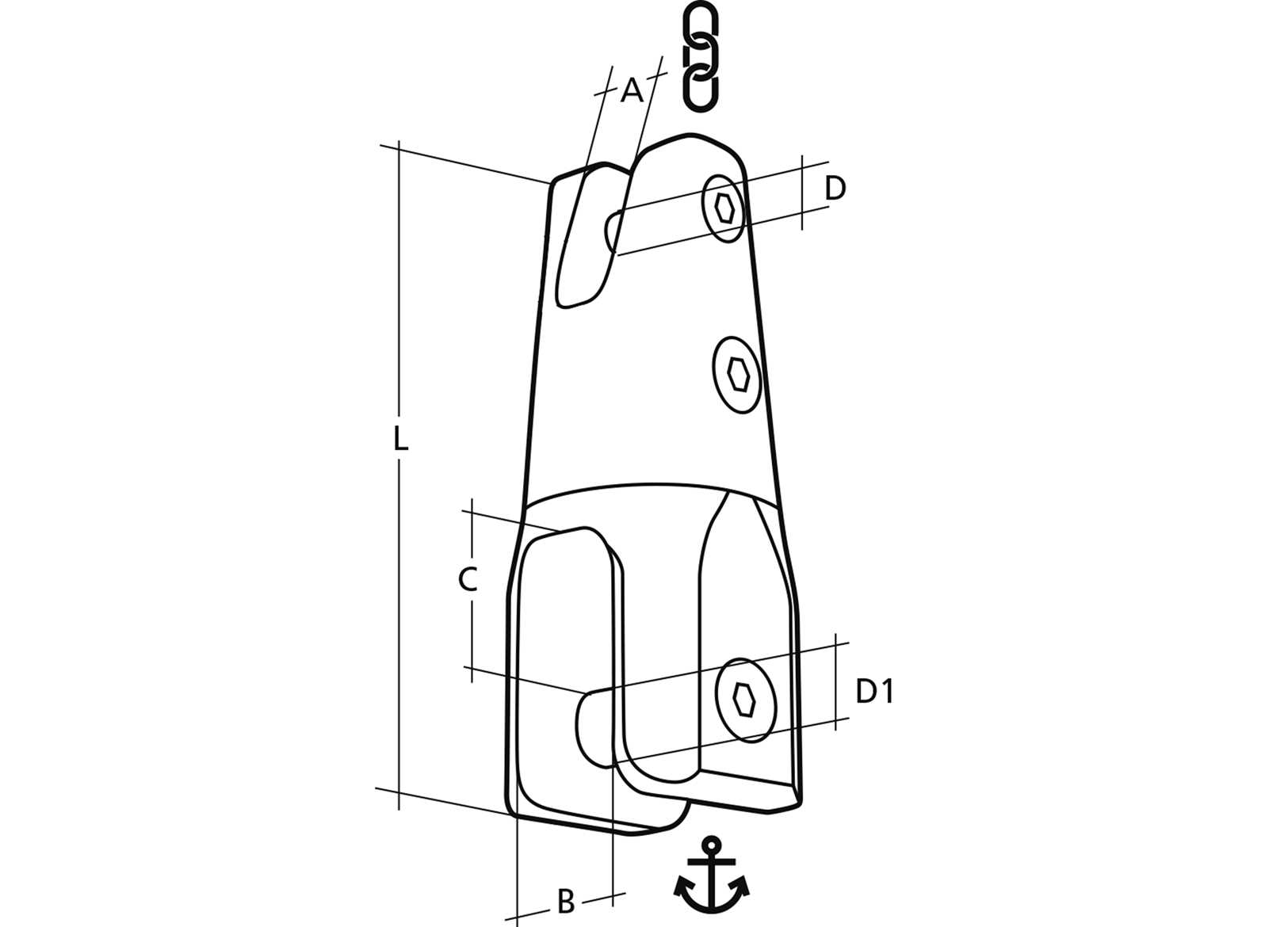

Specifications

• For Chain D mm12/14/16
• BL Kg12500
• A mm18
• B mm29
• C mm28
• D mm12
• D1 mm14
• L mm140
