Southco Stainless Steel 316 M1-20 Compression Lock Latch Ø61mm IP65

High quality Stainless Steel IP65 watertight compression lock latch with adjustable cam bar.

Code

0341133

Description

High quality Stainless Steel IP65 watertight compression lock latch with adjustable cam bar. Used to open and close bulkheads and hatches. The cam bar can be mounted in normal position or turned (Rev) to cover all the required thicknesses (A).

Specifications

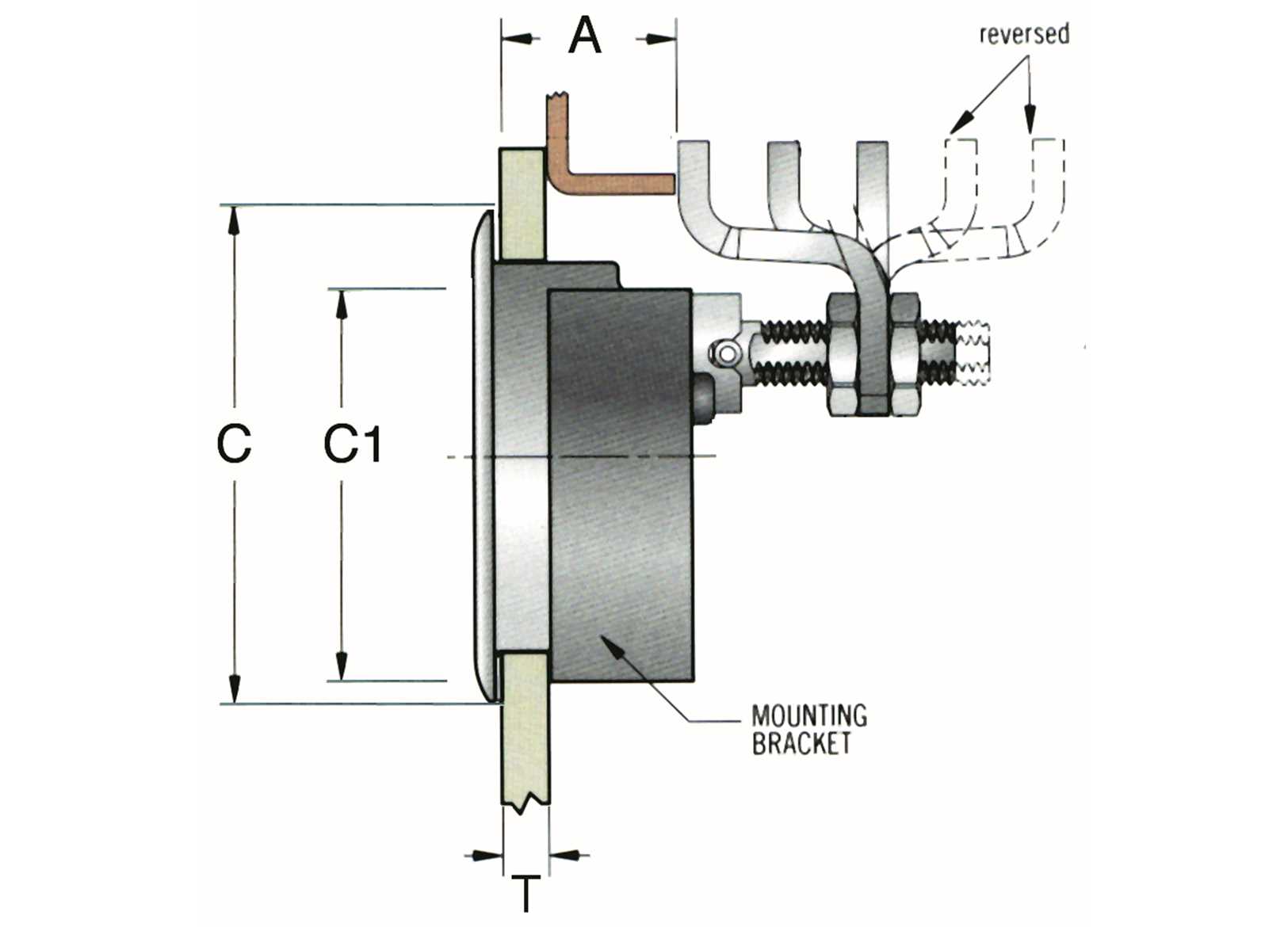

KeyNo
C mm61,5
C1 mm50
A mm27<>40 (51<>64 Rev)
T mm12<>22,5
