Stainless Steel 316 Compression Lock Latch Ø64mm

316 Stainless Steel compression lock latch with adjustable cam bar.

Code

0341002

Description

316 Stainless Steel compression lock latch with adjustable cam bar. Used to open and close bulkheads and hatches. The cam bar can be mounted in normal position or turned (Rev) to cover all the required thicknesses (A).

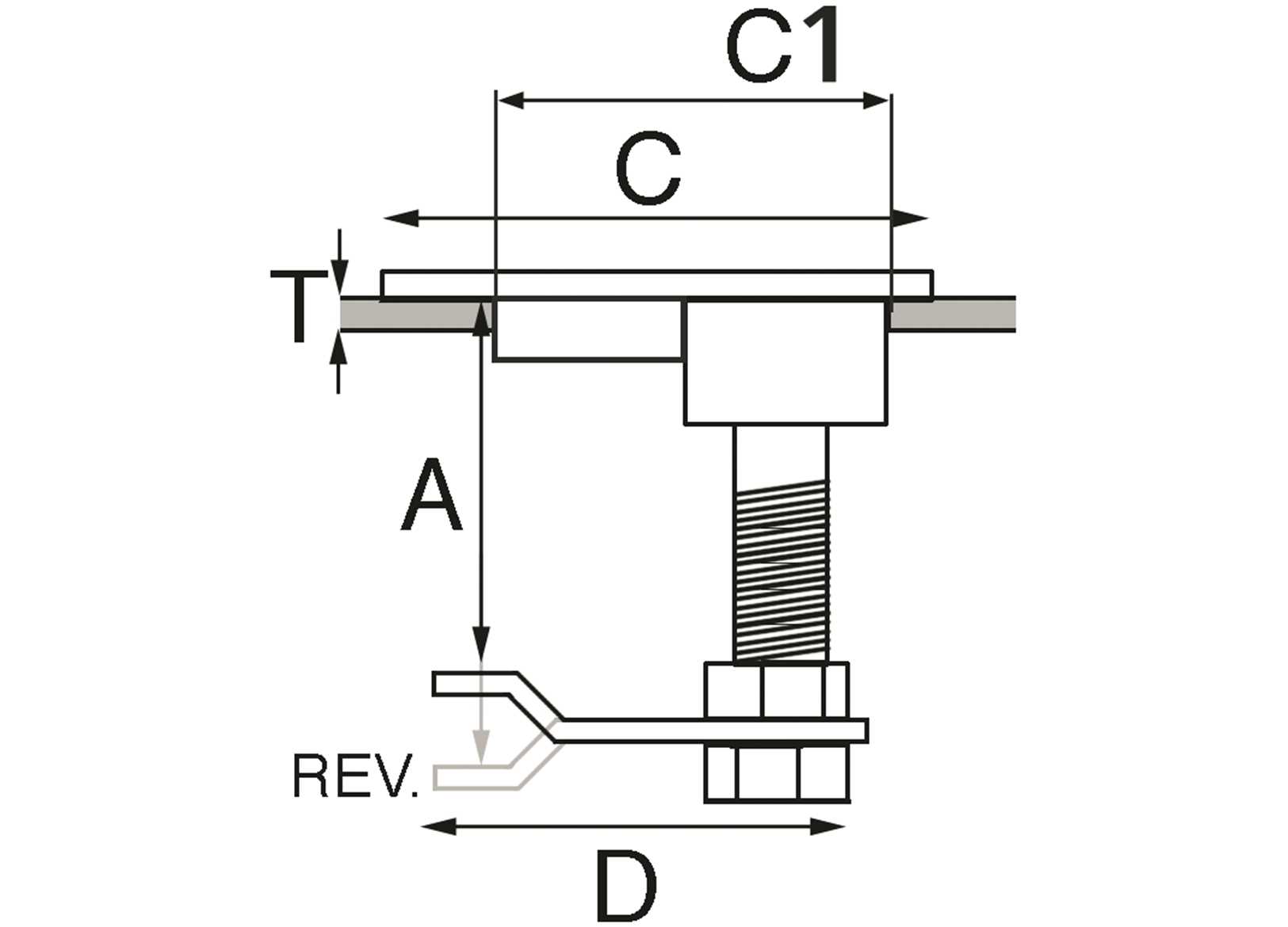

Specifications

KeyNo
C mm64
C1 mm50
D mm62
A mm20<>40 (45<>60 Rev)
T mm10<>20
