Air Divider and Fittings

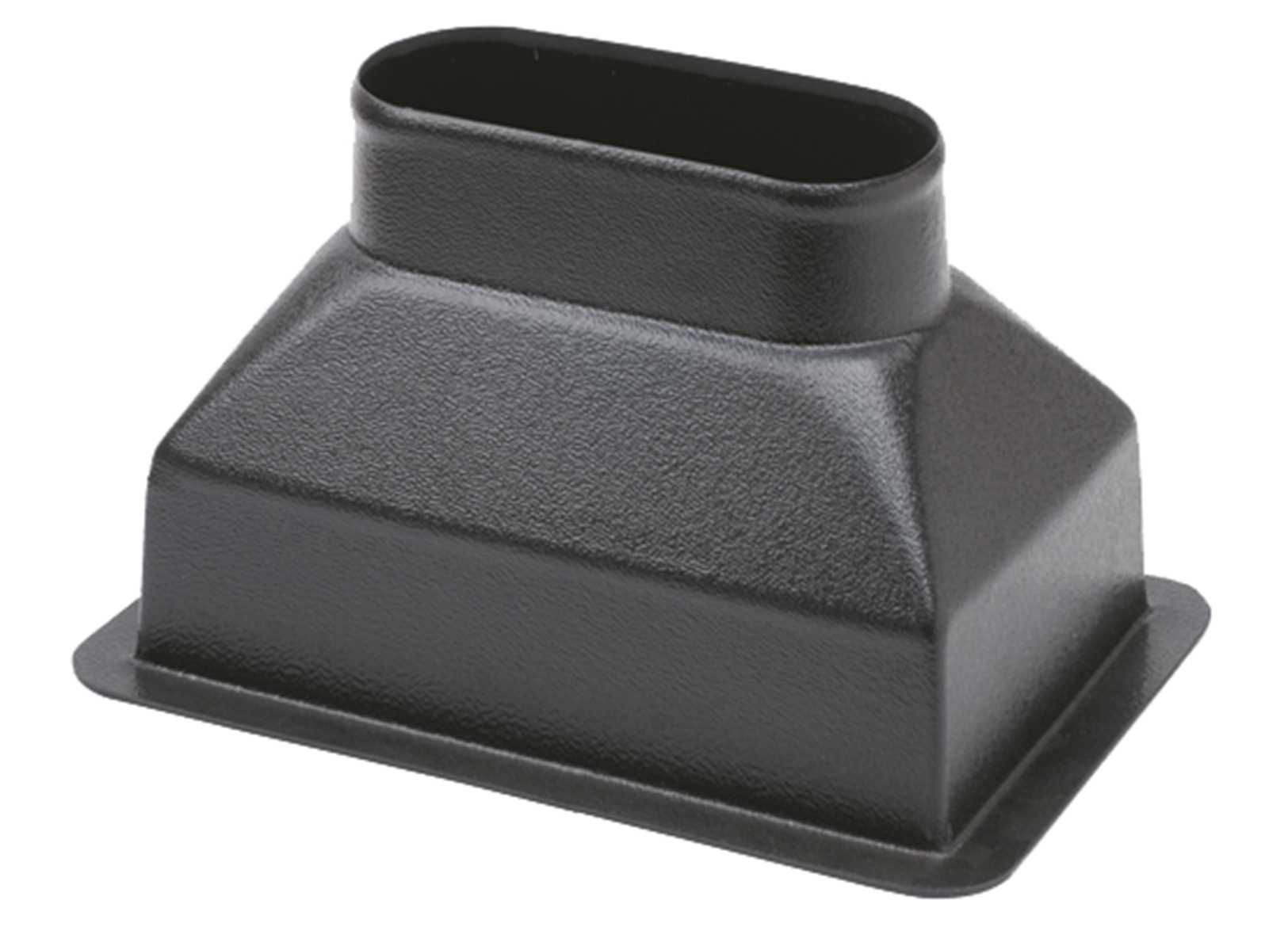

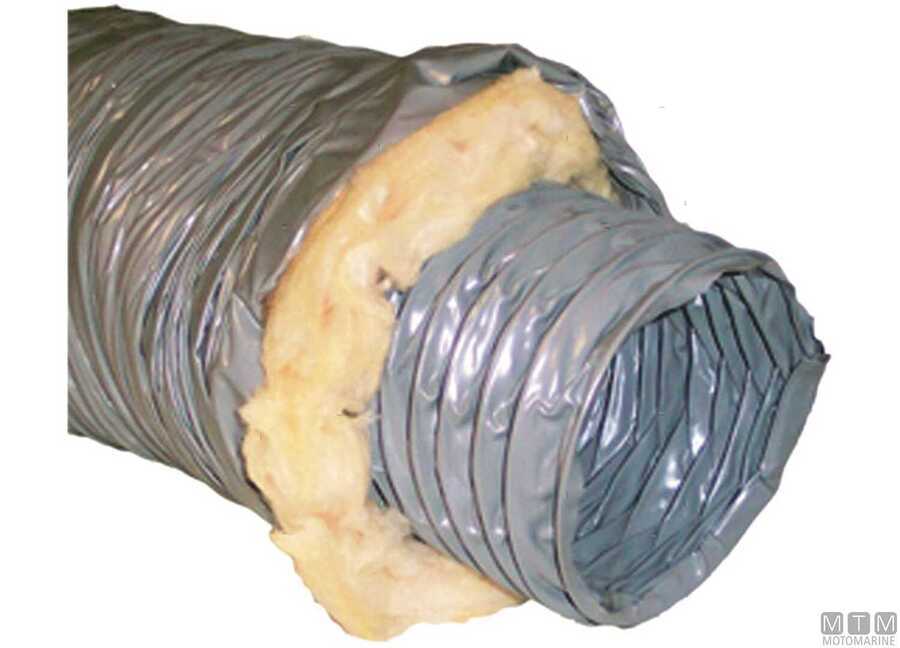

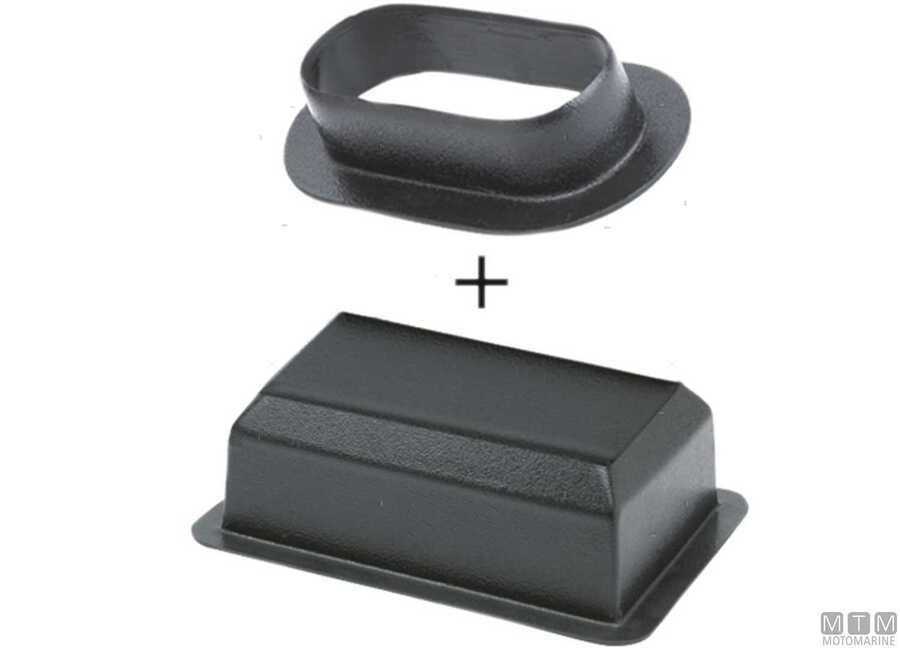

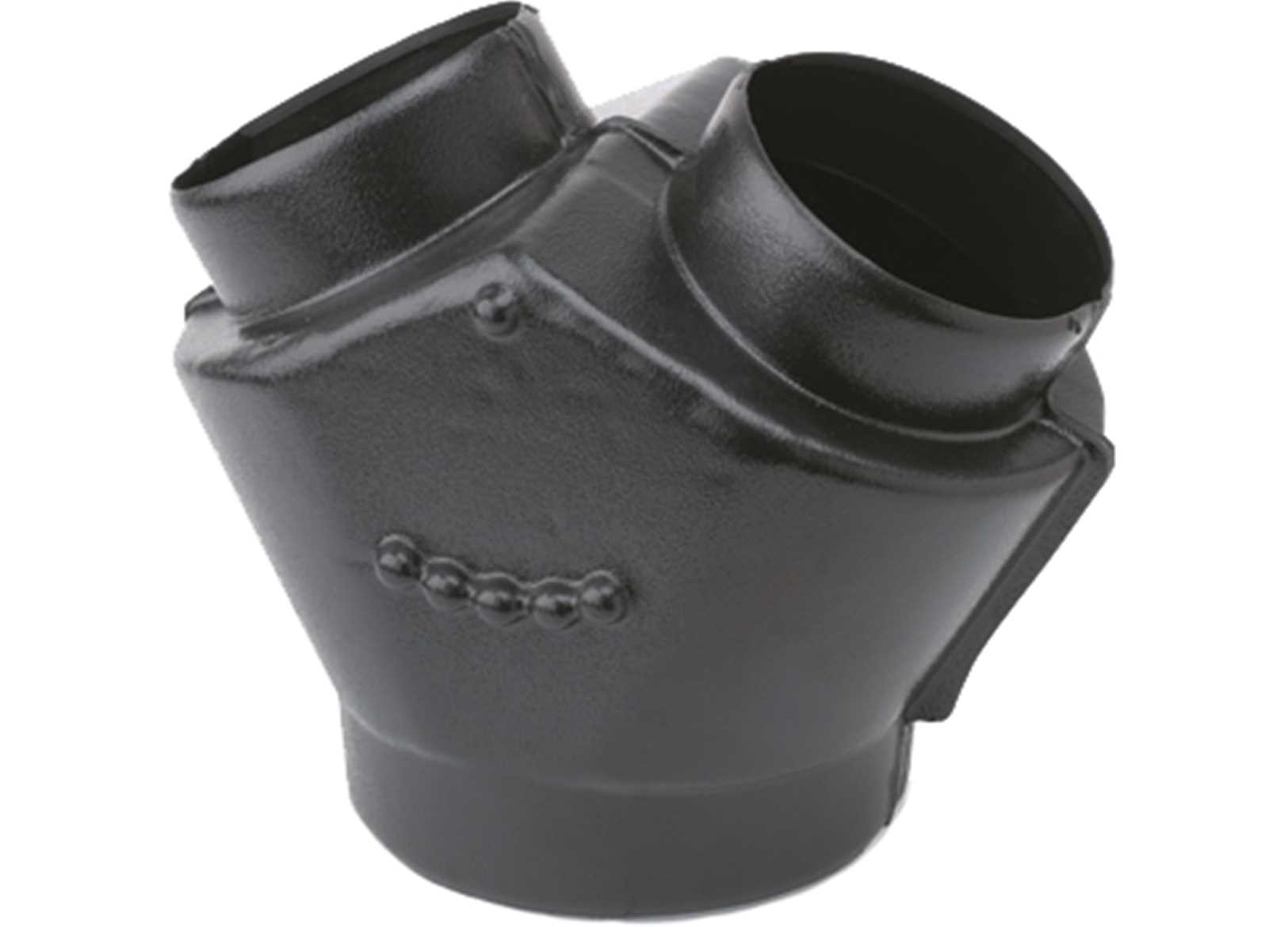

Air divider and fittings to connect the air supply grille to the air conditioning system. The Y-shaped air divider is used to create a second supply line. The insulated PVC air duct is flexible, with a deformable section to allow easy connection to the hose fixing ring of the divider. The hose fixing ring is supplied as standard on the small air dividers, while for larger models it must be purchased separately.
| Product | Ref | Recess Hole mm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Divider with Ring D102 | 200 x 100 | ||||||||||||||
|
|
|||||||||||||||
| Air Divider | 250 x 125 | ||||||||||||||
|
|
|||||||||||||||
| Air Divider | 250 x 150 | ||||||||||||||
|
|
|||||||||||||||
| Air Divider | 300 x 150 | ||||||||||||||
|
|
|||||||||||||||
| Air Divider | 350 x 150 | ||||||||||||||
|
|
|||||||||||||||
| Hose Ring D127 | 350 x 150 | ||||||||||||||
|
|
|||||||||||||||
| Hose Ring D152 | |||||||||||||||
|
|
|||||||||||||||
| Y Air Divider for D152/152/102 | |||||||||||||||
|
|
|||||||||||||||
| Air Duct D102 L5 m | |||||||||||||||
|
|
|||||||||||||||
| Air Duct D127 L5 m | |||||||||||||||
|
|
|||||||||||||||
| Air Duct D152 L5 m | |||||||||||||||
|
|
|||||||||||||||
