Vitrifrigo MACS Air Conditioner

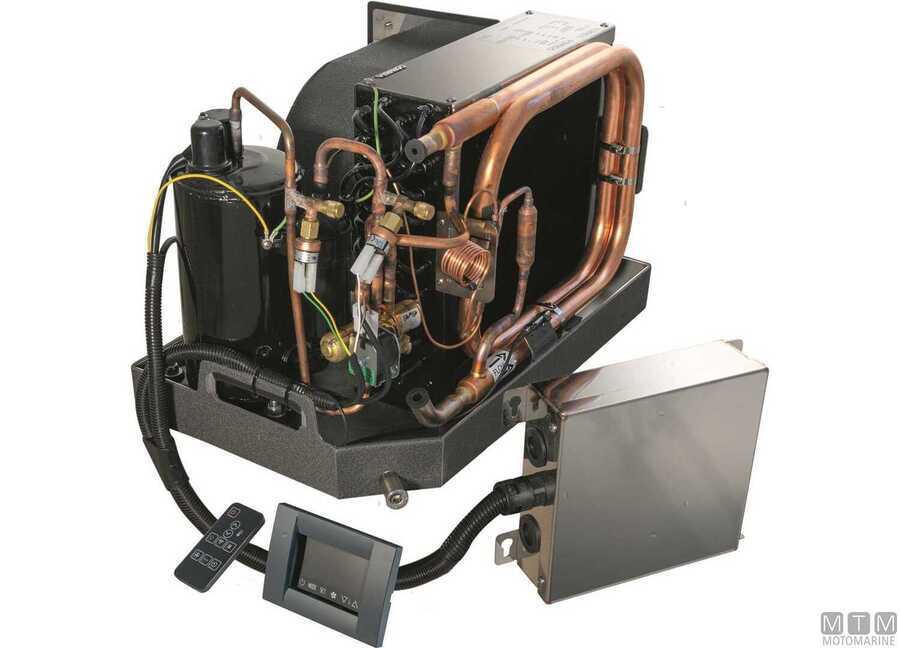

Vitrifrigo MACS air-condition system designed for marine applications, ideal for cooling a single room or two neighbouring rooms. It uses a seawater circuit and works as an air conditioner with cold air and as a heater with hot air. Compact monobloc system complete with compressor, condensator, evaporator, vent and a control panel with 3 meter extension cable and remote control.
Electrical panel with 1.2 meter extension and 220V power supply for use with shorepower or with a generator.
Supplied without accessories such as hoses, grills, water pump, filter and intake strainer which must be purchased separately.
Consumption and flow rate:
MACS 7000: 600W/2.6A (700W/3.0A in heating mode), flow rate 400 mc/h
MACS 12000: 890W/4.0A (1100W/4.7A in heating mode) flow rate 540 mc/h
MACS 16000: 1100W/5.0A (1300W/5.5A in heating mode) flow rate 640 mc/h
| Product | Ref | Cooling Btu/h | Heating Btu/h | Weight Kg | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACS 7000 | 7000 | 7800 | 23 | ||||||||||||
|
|
|||||||||||||||
| MACS 12000 | 12000 | 13000 | 26 | ||||||||||||
|
|
|||||||||||||||
| MACS 16000 | 16000 | 18000 | 31 | ||||||||||||
|
|
|||||||||||||||
